What is Membrane Keypad?

Membrane Keypad Linepro Controls Pvt Ltd

The membrane keypad and membrane switch can be described as an electric keypad that turns an electrical circuit on or off. It is different when compared to mechanical keypad that is typically constructed of plastic and copper; a membrane keypad is an electronic circuit that is printed on Polyethylene Terephthalate (PET) as well as Indium Tin Oxide (ITO). The ink used for screen printing is typically silver / copper or graphite-filled and thus a conductor.

Membrane keypads are interfaces for user equipment tools that facilitate the transmission of commands between users and electronic devices. Membrane keypad are classified as a type of interface utility, along with touchscreens, plastic keyboards as well as toggle keypad, and different kinds that control system. Interface utilities are as straightforward as keypads that use tactile technology to control lighting, but they can also be as complex as membrane keyboards or keypad panels that are used with computers.

Construction of Membrane Keypad

Membrane Keypad and switch is defined as an instantaneous keypad where at least one contact is made on or is made from the flexible substrate. Such Keypads are typically made up of five or more layers of a flexible substrate.

Common Membrane Keypad Layers

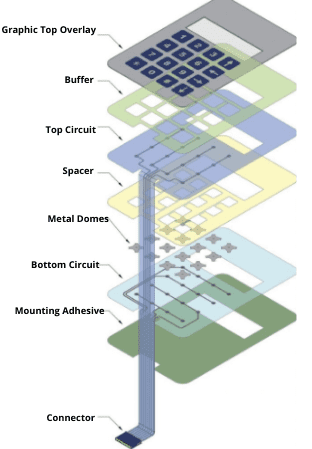

Membrane Keypad Layers Linepro Controls Pvt Ltd

Graphic Top overlay

The first layer of membrane keypad and switch includes a graphic overlay. It serves as the interface for the user, since it will usually show users how to operate the device. These layers are usually printed digitally or screen printing ink on one side of coated polycarbonate or PET substrate.

Spacer top adhesive

This layer usually lies beneath the graphic overlay, and bonds the graphic to other layers on the membrane keypad.

Dome retainer

The dome retainer sits beneath the spacer’s top adhesive layer. This layer is used to hold the domes of metal or pads for shorting that will be used to turn on the keypad. The layer is usually composed of thin, flexible PET.


The spacer layer is located underneath the retainer for domes. The layer has ventilation cuts that let air circulate when tactile keypad are activated. This layer acts as a demarcation between the top and bottom circuits. This enables the circuit to remain open until the keypad button is pressed. The spacer is a polyester material with front and backside with an adhesive layer.

Circuit layer

Usually the inks that conduct electricity are printed on thin and flexible PET to form this layer. Carbon and silver inks are the most frequently employed. In some cases, PCBs or FPCs (Flexible Printed Circuits) are also used. The circuit layer lets the keypad work. If the keypad isn’t active, the circuit remains closed and current does not flow. When the user turns on the keypad by pressing down on the dome or the pad, which eventually shorts the circuit. This closes the circuit and current is able flow, prompting the proper reaction by the keypad’s membrane.

Mounting adhesive

The top layer of membrane keypad is the mounting adhesive that is used to connect the keypad’s membrane to the application you want it to be attached to.

The membrane’s layers keypads are typically joined using pressure-sensitive adhesives. However, less expensive designs may be joined with other mechanical methods like the keyboard housing.

Backlighting of Membrane Keypad

There are four common methods for backlight membrane keypad.

  • Light Guide Film (LGF)
  • Light Emitting Diodes (LED)
  • Electroluminescent (EL) Lighting
  • Fiber Optic Lighting

To know in detail about these backlighting techniques for membrane keypad, read our article on Enhancing Effectiveness of Membrane Keypad by Backlighting.

Applications of Membrane Keypad

The most common applications for membrane keypad and switch are microwave oven panels, controls for air conditioners, remote control for TV, etc. The tactile feedback for keys can be achieved by embossing the top PET layer, or by embedding snap domes made of metal or polyester domes, or by forming graphics layer.

The advantages of membrane keypad are their ease of cleaning, their ability to seal and their slim profile. These keypads can be utilized alongside other control systems, such as keyboards, touch screens, lighting, and can be a bit complicated, just like keypad and keyboards made of membrane on computers and mobile devices. They are reliable user interfaces with low costs that are suitable for a broad variety of devices, and come with numerous possibilities for creativity.


Over and out, it may be noted that membrane keypad involves customization at every step. At Linepro we are available 24×7 to answer all your queries for membrane keypads. We take care of minute details when producing your keypad device, so that, you are delivered exactly what you wished for.
